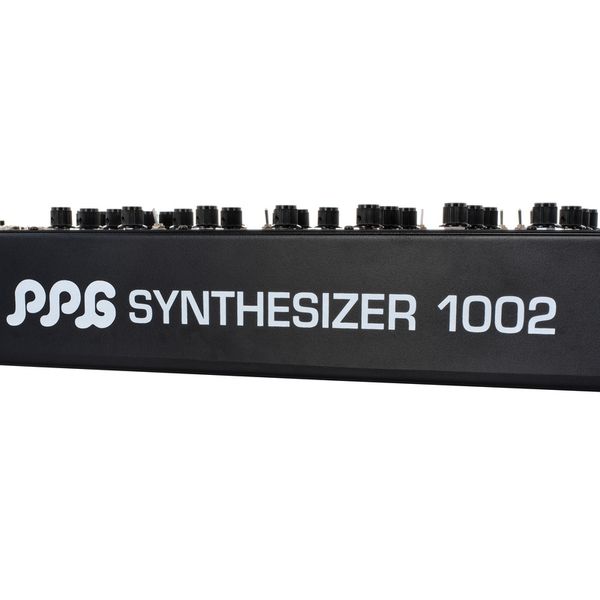

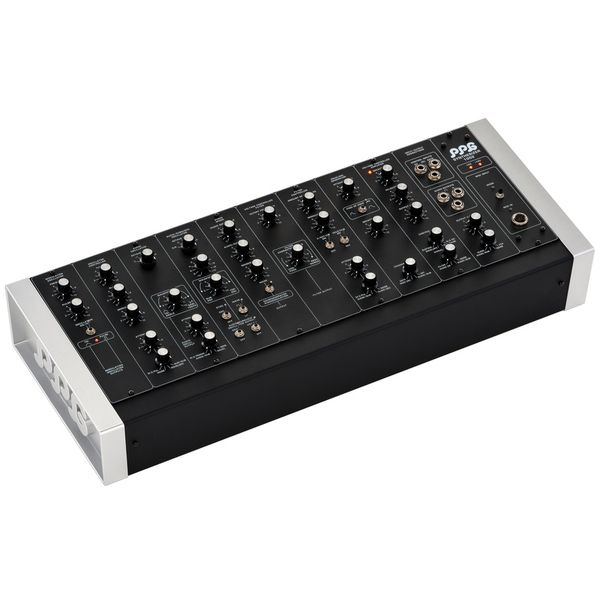

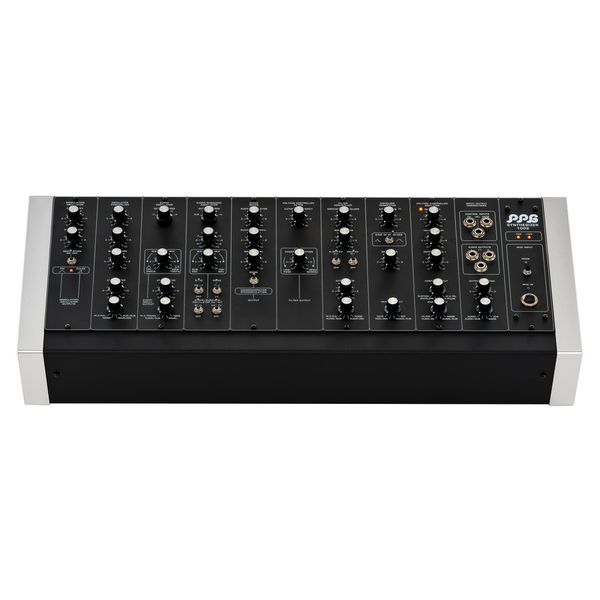

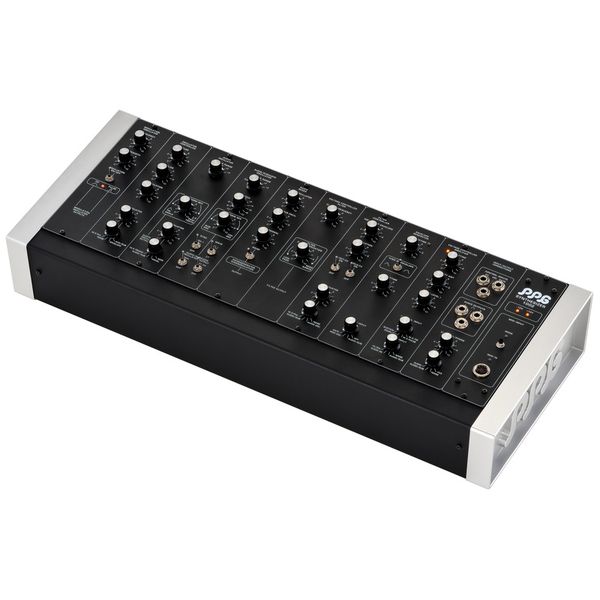

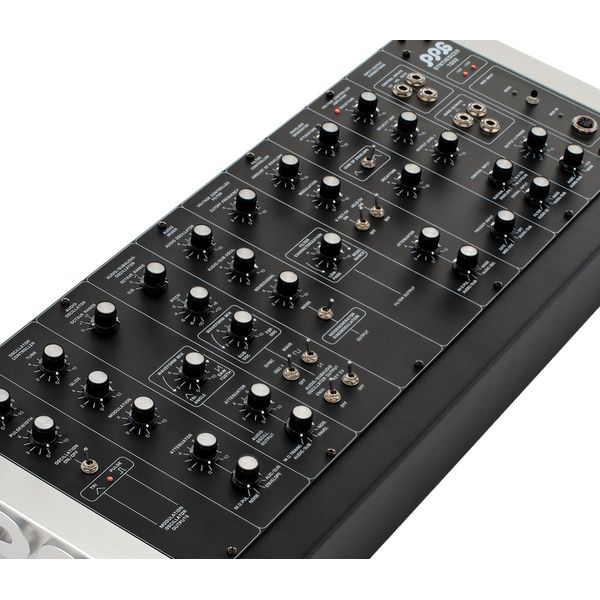

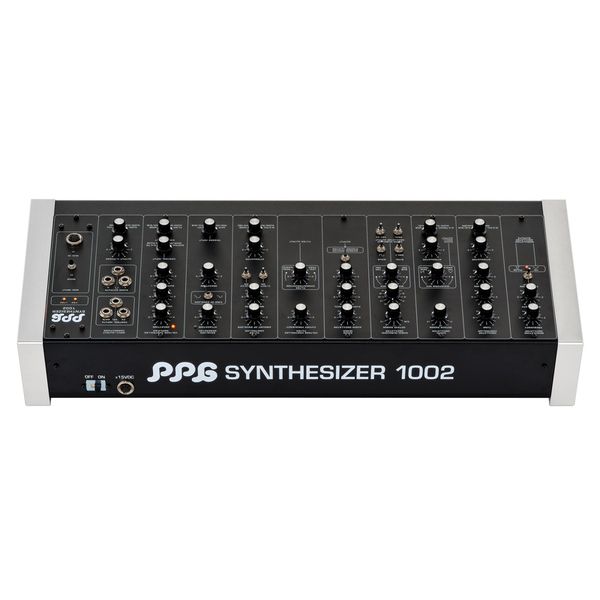

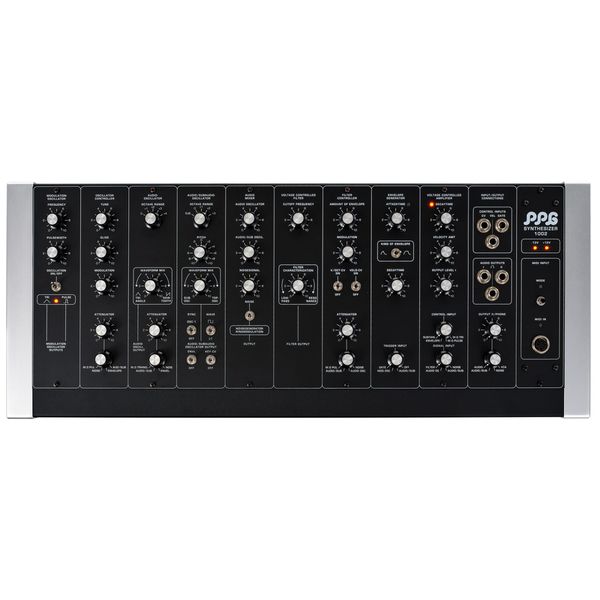

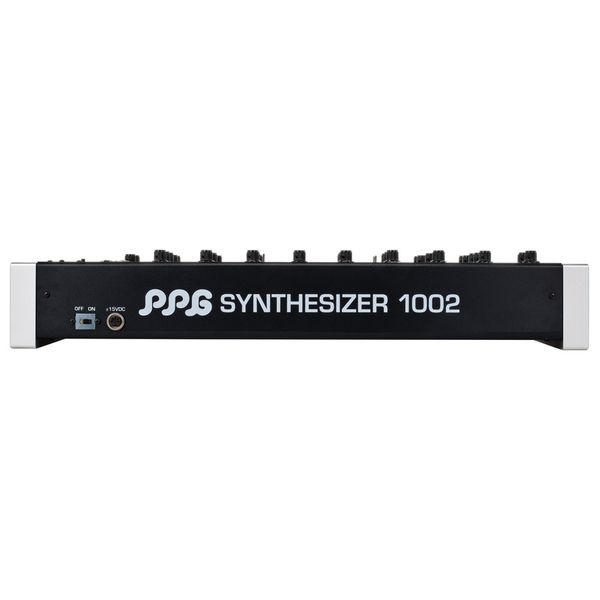

PPG 1002 Mk 2
Start 360°
Analogue Synthesizer
- Limited to 102 units, this is a handcrafted and improved reissue of the original analogue synthesiser PPG 1002 from 1975
- Faithful recreation of the original circuit designs by Wolfgang Palm
- Enhanced stability and additional features designed for integration into modern studio workflows
- Dimensions (W x D x H): 655 x 260 x 100 mm
- Weight: 10 kg

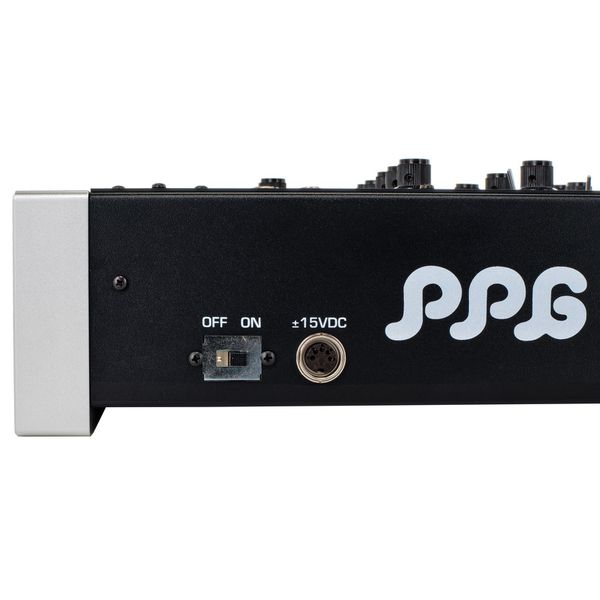

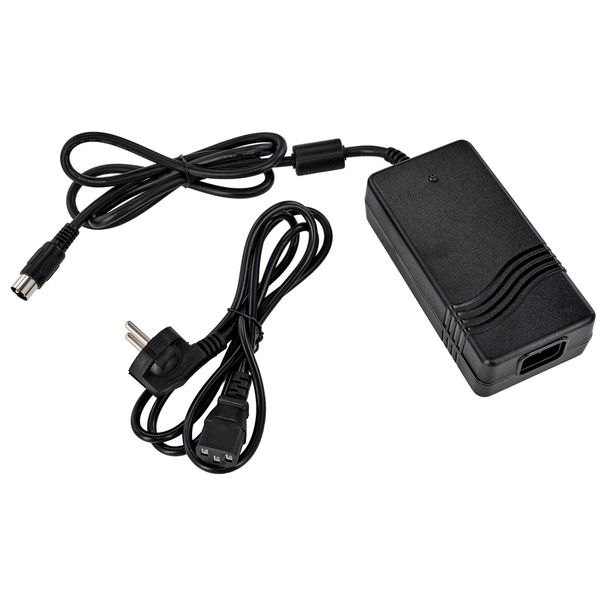

- Includes power supply unit and power cable

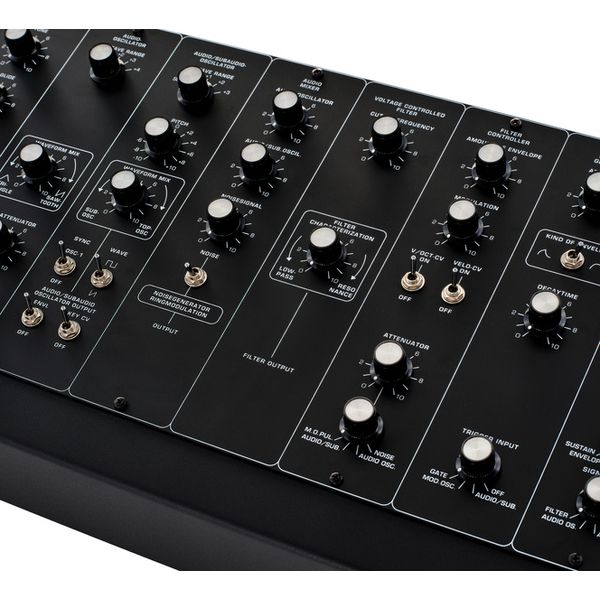

Sound engine:
- Two temperature-compensating oscillators
- Sub oscillator
- Noise generator
- Ring modulator

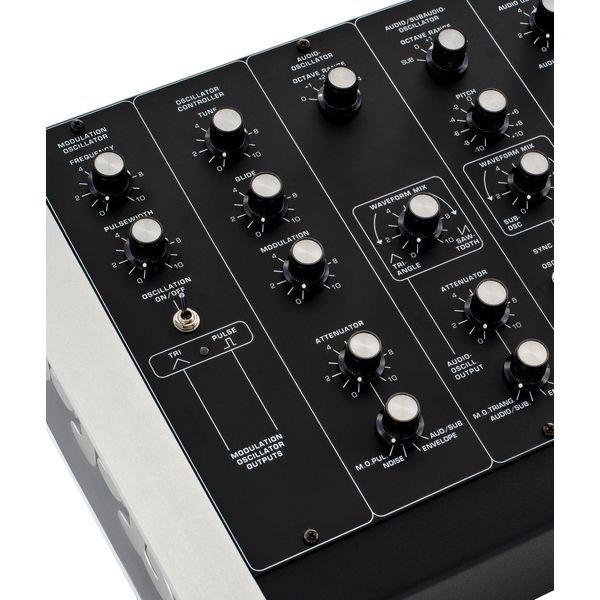

- Oscillator one with continuously variable crossfade from triangle to sawtooth
- Oscillator two with switchable sawtooth or square wave
- Oscillator synchronisation from VCO2 to VCO1
Sound editing:
- Classic 24 dB/octave low-pass filter with resonance and variable modulation options
- VCA with its own envelope and various modulation options
- LFO with adjustable pulse width, triangle and square waveforms

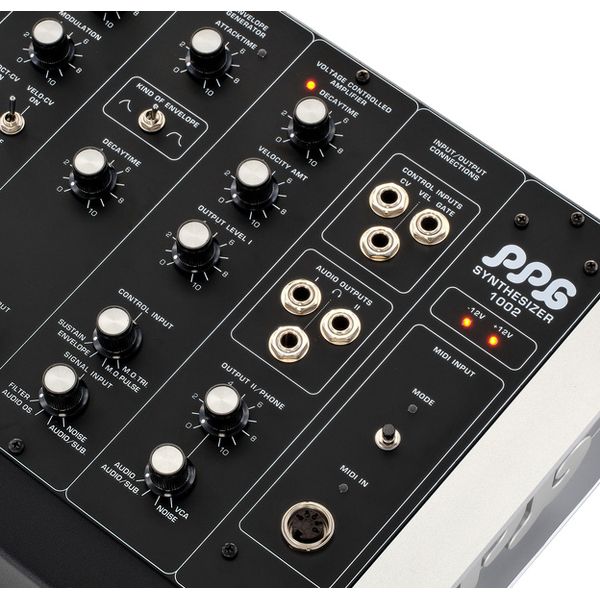

Connectors:
- V/Oct-CV, Velocity-CV, Gate and 6.3 mm jack
- Audio outputs I / II and headphone output: 6.3 mm jack sockets
- MIDI input: 5-pin DIN
-
Fås siden April 2026
-
Artikelnummer 624386
-
salgsenhed 1 stk
-
Design Desktop
-
Polyphony 1
-
Sound Generation Analogue
-
MIDI interface 1x In
-
Storage Medium None
-
USB-port No
-
Effects No
-
Arpeggiator No
-
Number of Analog Outputs 3
-
Digital Output No
-
Display No
-
Optional Expansions None
-
Special Features CV Inputs
-
