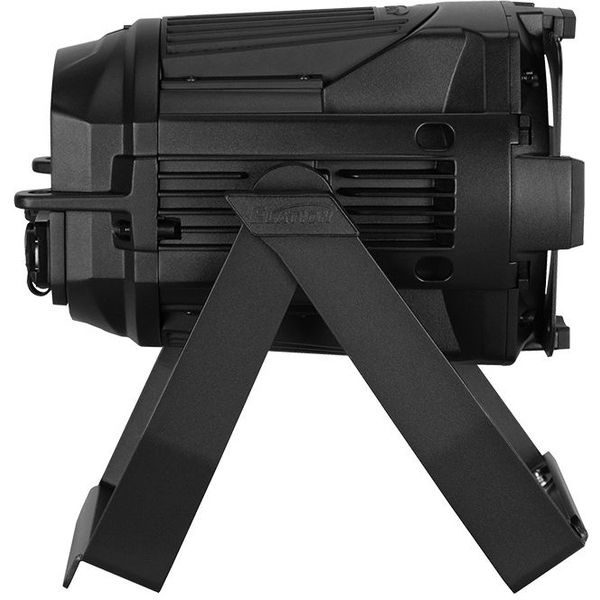

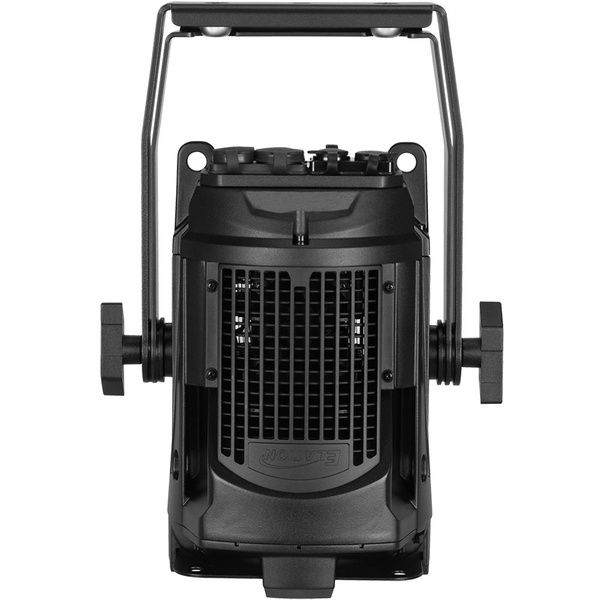

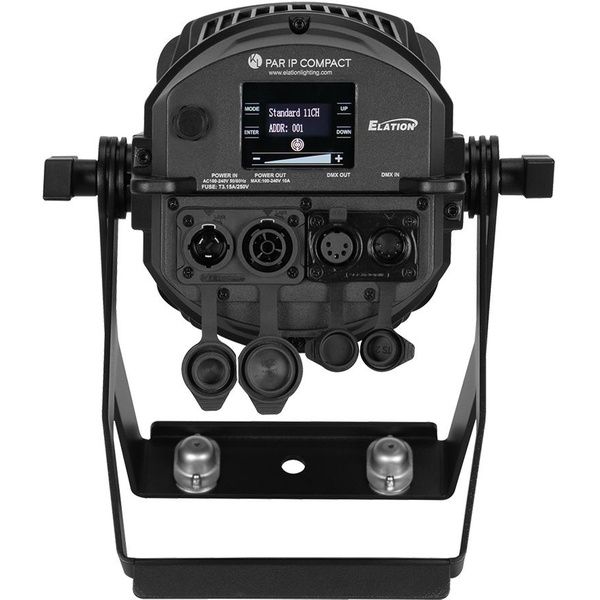

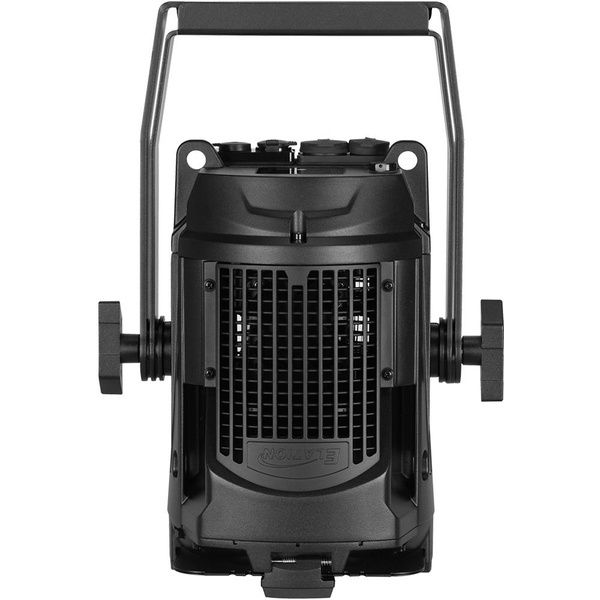

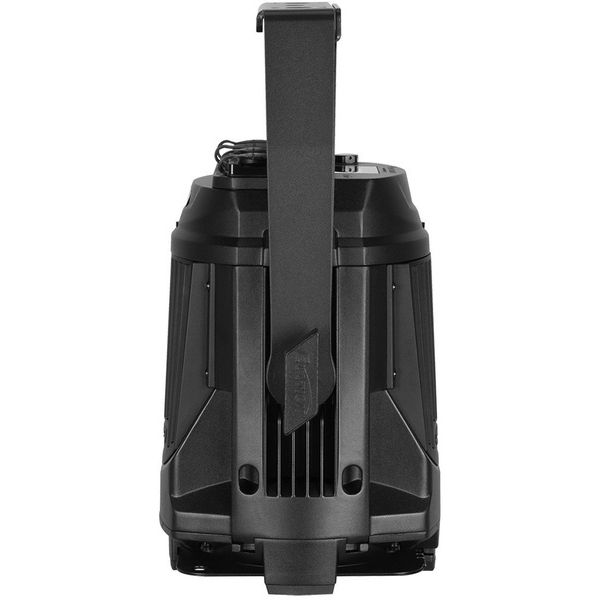

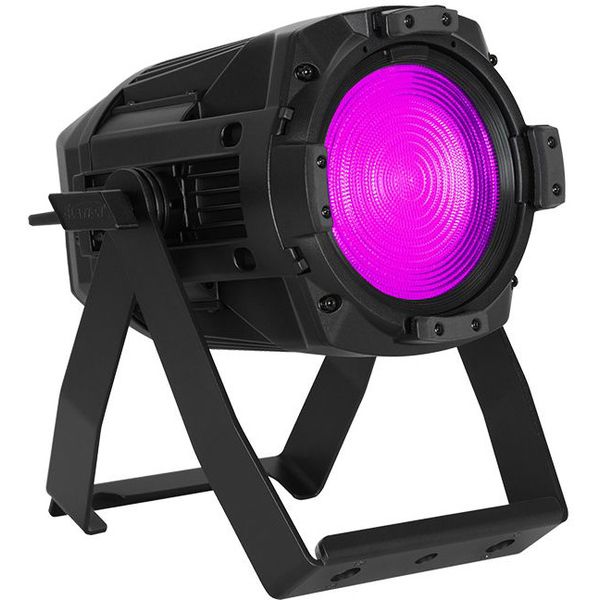

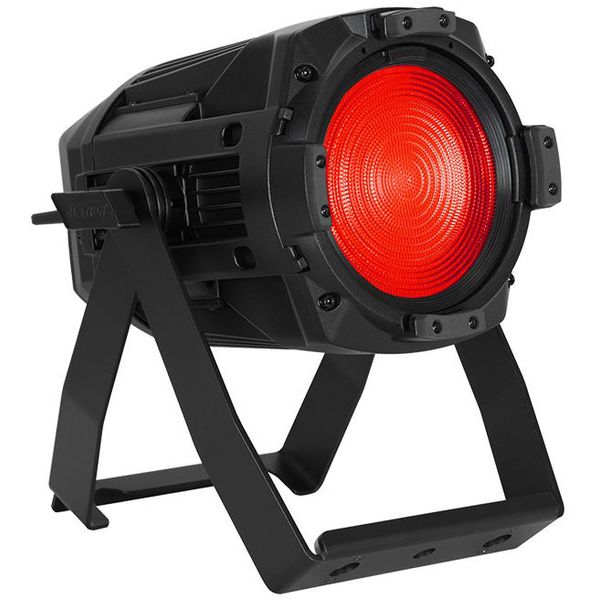

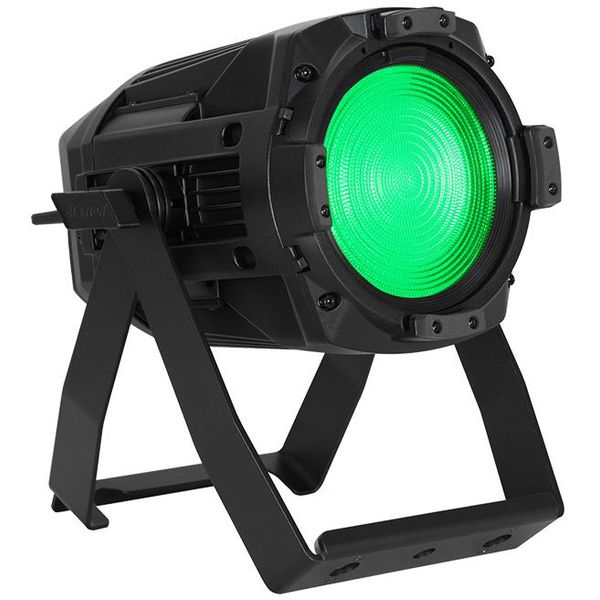

Elation KL PAR IP Compact

150 W RGBMA LED PAR Spotlight with Interchangeable Lenses

• Manual adjustment via touch fader display
• Manual adjustment of brightness and colour
• Stand alone programming
• Selectable PWM frequency (DMX 512-A)
• White point adjustment
• Dim-to-warm
• Fade between colour macros
• CMY Emulation
• Virtual colour correction (2,400 – 8,500 K)
• Green/magenta customisation
• Virtual colour wheel
• And many more

Technical specifcations:

• LED type: 150 W RGBMA LED engine
• CRI 94.9
• TLCI 95
• Light output: 5,474 lumens
• Beam angle: Interchangeable lenses 10°, 22°, 30°, 55°
• Cooling: Temperature-controlled fan
• Control protocol: DMX 512-A (RDM), NFC
• Number of DMX channels: 1 / 4 / 6 / 9 / 10 / 11 / 15 / 19 (8 modes)
• DMX input and output: XLR 5-pin
• Mains connection: powerIP male/female
• Mains voltage: 100–240 V, 50–60 Hz
• Current consumption: 0.9 @ 230 V
• Housing material: Die-cast aluminium
• Colour: Black
• Protection rating: IP65
• Dimensions (L x W x H): 25.4 x 36.2 x 23.6 mm
• Weight: 5.4 kg
• Includes colour filter frame, interchangeable lenses (10°, 22°, 30° and 55°) and powerIP connection cable
