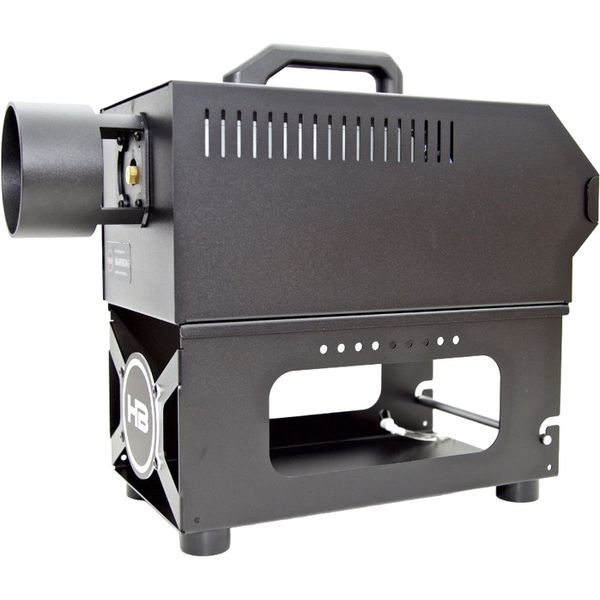

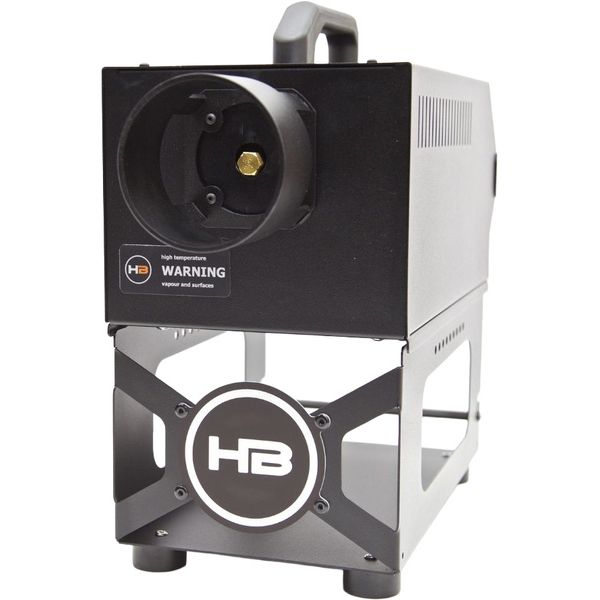

Hazebase Highpower²

Vaporizing Fog Machine

• Power: 3100 Watt

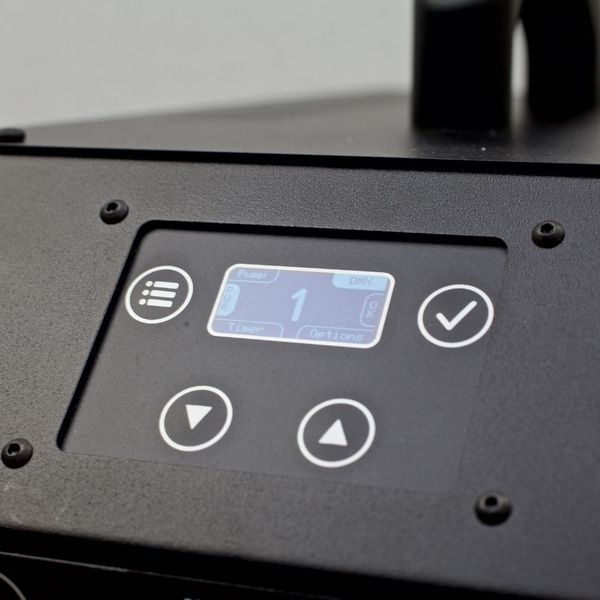

• 1.3" OLED display with membrane keypad
• Control via DMX/RDM, radio, cable remote control or stand-alone
• Voltage variant: 230 V~ 50 Hz
• Power connection: PowerCON TRUE1

Technical specifications:

• Heat-up time: approx. 8 min.
• Fog output: Adjustable from 1–100% in 1% increments
• Output distance: up to 15 meters (with noise reduction nozzle), 20 meters (long-range nozzle)
• Fluid consumption: Full power: up to 300 ml/min
• Continuous fog: up to 70 ml/min
• Different pump characteristics: Full power (approx. 20 seconds of full output, without pump power regulation)
• Maximum time (approx. 50 seconds maximum output)
• With pump output control depending on the temperature of the heating element)
• Non-stop fog: Tank capacity: 5 litres
• Dimensions (L×W×H): 480 × 212 × 240 mm (with tank holder: 388 mm high)
• Weight: 14.0 kg
• Operating temperature: -+5°C to +45°C

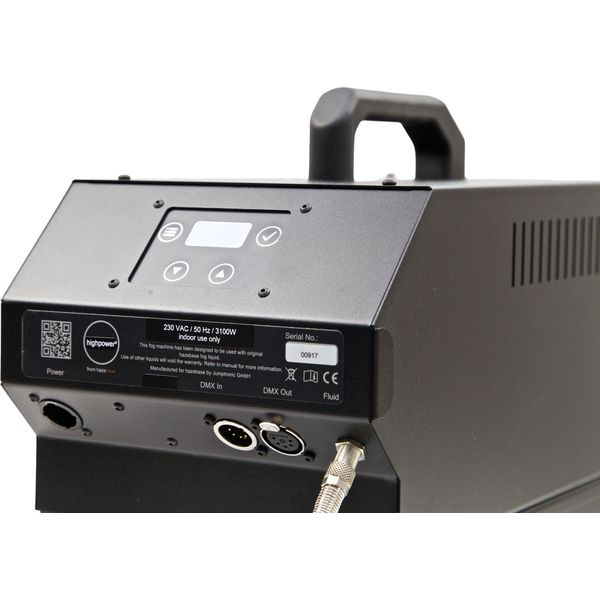

• Control and protocols: 5-pin XLR In/Out
• Supports: DMX512, RDM, Modbus RTU, JT-Remote
• Built-in timer

Contents of the delivery:

• 5 L empty canister
• Tank lid with quick connector
• Fluid hose with quick coupling and grommet
• Power cable with TrueOne plug
• Tank
• Operating instructions

Optional accessories:

• Wireless remote control (not included)
• Wired remote control (not included)
• Compatible fluids: base X – extremely long-lasting: Art.114422, base L – long-lasting: Art.114419, base M – normal lasting: Art.114418, base Q – fast dissolving: Art.114417
