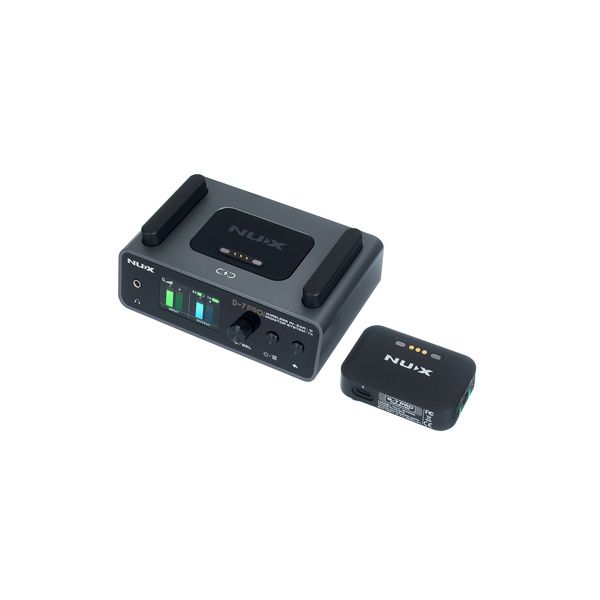

Nux B-7 Pro In-Ear-Monitor B-Stock
Wireless Audio System
- 2.4 GHz frequency band (2400 – 2483.5 MHz)
- Frequency hopping transmission
- Maximum RF output power: 10 mW E.I.R.P.
- 24-bit/48 kHz sampling rate
- Frequency range: 20 – 20,000 Hz
- Latency depending on mode: 7.33 ms (low latency), 10.85 ms (standard), 14.33 ms (safe mode)
- Input impedance: 10 kOhm unbalanced / 20 kOhm balanced
- Maximum AUX input level: 2.1 Vrms (8.7 dBu)
- Maximum balanced input level: 9.8 Vrms (22 dBu)
- Headphone output impedance: = 13 ohm
- Maximum output power per channel: 57 mW @ 16 ohm (THD < 0.1%, 1 kHz)
- Channel separation: -105 dB
- THD+N: < 0.01% typical
- Dynamic range: 110 dB A
- Output level adjustment range: Mute to +12 dB
- Automatic shutdown after ten minutes of inactivity or loss of connection
- Integrated Li-polymer rechargeable battery (transmitter: 3.7 V / 3000 mAh, receiver: 3.7 V / 400 mAh)
- Battery life up to six hours (TX and RX)
- Transmitter power supply: DC 9 V, 1 A (centre negative)
- Operating range: Up to 50 metres
- Dimensions of the transmitter: 140 × 97 × 53 mm
- Weight transmitter: 525 g
- Dimensions of the receiver: 47 × 71 × 22 mm
- Weight of the receiver: 51 g
-
Fås siden Marts 2025
-
Artikelnummer 618377
-
salgsenhed 1 stk
Henvisninger til de understøttede frekvensområder
Her kan du se, hvilke frekvensområder, der er understøttet af dette trådløse udstyr og i hvilke lande, disse frekvenser også i fremtiden er godkendte til trådløse anlæg.
