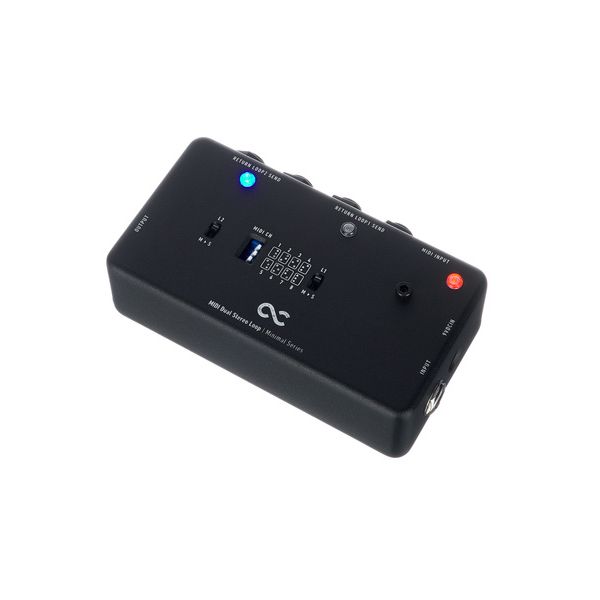

One Control Minimal Series MIDI DS B-Stock
True Bypass Stereo Looper For Effect Pedals
- Bypass switching via MIDI
- It can use between 1-8 MIDI channels to receive control signals
- It can be controlled via program change (PC) or control change (CC) signals
- Mono and stereo signals can be processed variably
- True bypass
- Status LEDs
- Metal housing
- Input and output: 6.3 mm Mono jacks (TRS)
- Send/return: 6.3 mm Mono jack (TRS)
- 5-Pin MIDI input
- Power supply via optional 9 V DC power supply unit 2.1 x 5.5 mm hollow plug, polarity (-) inside, not included in the delivery
- Passive operation possible without power supply: Status LEDs, BJF buffer and DC hollow plug outputs then without function
- Current consumption: max. 120 mA
- Dimensions (L x W x H): 68 x 125 x 32 mm
- Weight: 366 g
Note: Battery operation is not supported
Note Register your product at www.w-distribution.de/Warranty and extend the warranty to 4 years.
-
Fås siden Januar 2023
-
Artikelnummer 602221
-
salgsenhed 1 stk
-
Type Looper/Switcher
-
LED Display Yes
-
PSU Connector Yes
-
Shape Floor Effects Pedal
-
MIDI Interface Yes
