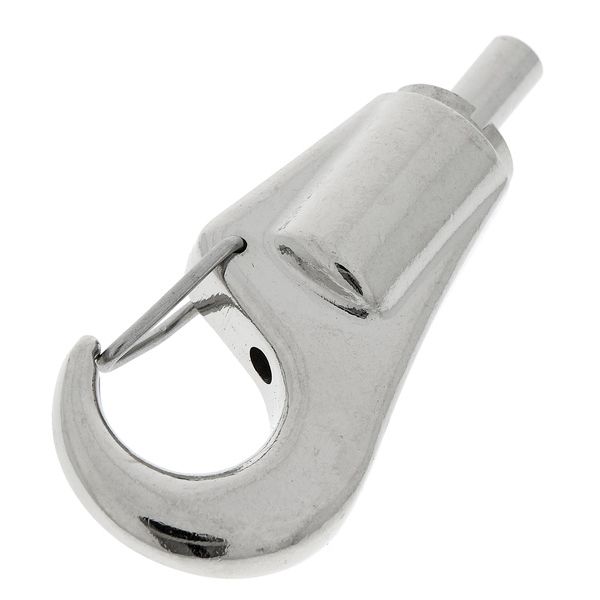

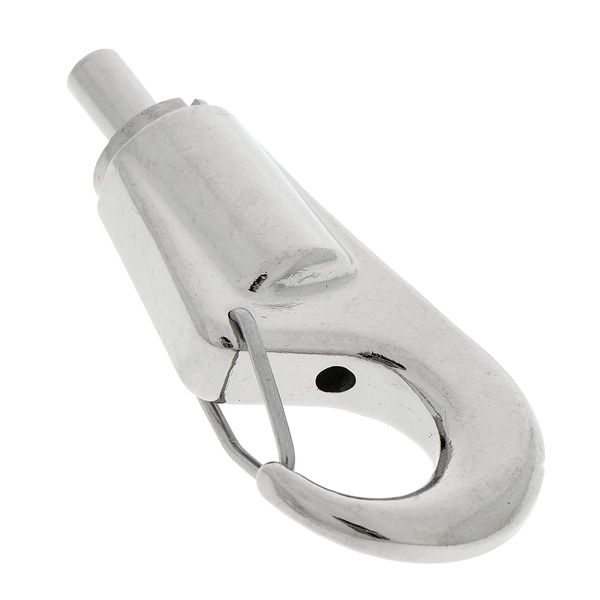

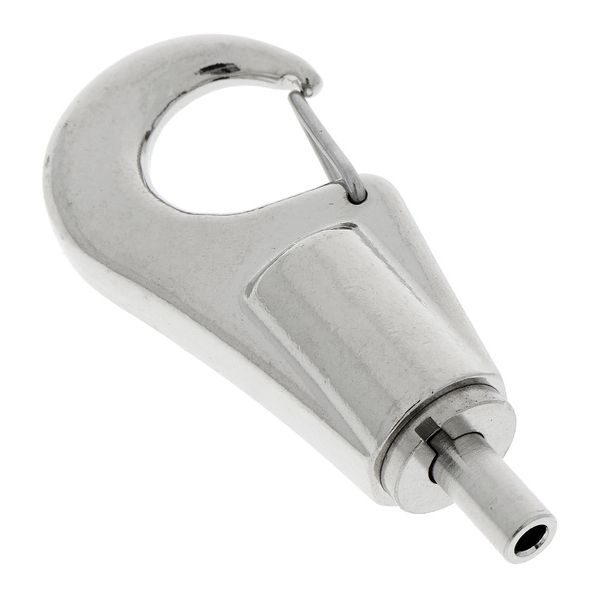

Reutlinger Typ 15 Hook Si
Start 360°
Wire Cable Holder
- Silver wire rope holder with hook and safety catch
- Suitable for wire rope diameters: 1.0 mm, 1.2 mm, 1.5 mm
- Diameter: 10.5 mm
- Total length: 35 mm
- Hakenöffnung: 8 mm
Working loads wire rope holder with galvanised steel cable 2300 N/mm²:
- Rope diameter 1.0 mm: 13 kg
- Rope diameter 1.2 mm: 17 kg
- Rope diameter 1.5 mm: 25 kg
Working loads for wire rope holders with stainless steel rope 1570 N/mm²:
- Rope diameter 1.0 mm: 8 kg
- Rope diameter 1.2 mm: 15 kg
- Rope diameter 1.5 mm: 20 kg
Note: TÜV certified, without BG test certificate (not DGUV compliant)
-
Fås siden December 2025
-
Artikelnummer 631771
-
salgsenhed 1 stk
-
Type Holder
-
Size Type15
Vis varianter af dette produkt
