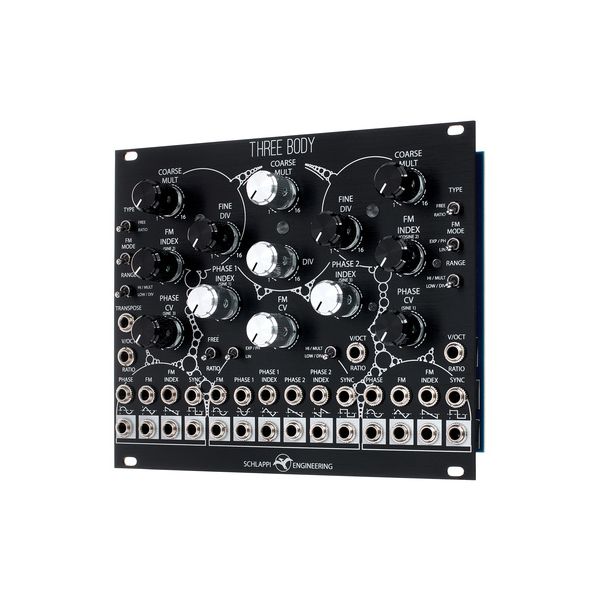

Schlappi Engineering Three Body Black B-Stock

B-stock med fuld garanti
Returvare hhv. med lette brugsspor

Eurorack Module

Digital triple oscillator
Specialised in frequency and phase modulation
One control knob per oscillator for coarse, fine-tuning and FM intensity
Each oscillator has 8 selectable operating modes for free tuning or by ratio, LFO/VCO mode, linear or exponential FM and phase modulation
Internal normalisations for mutual FM, phase modulation and tracking allow already complex sounds without patch cables
CV inputs for all parameters
Pitch CV inputs (1V/oct.) and sync input per oscillator
Outputs for sine, triangle, sawtooth and square for the outer oscillators
Outputs for sine, cosine, triangle, sawtooth, cosaw and square for centre oscillator
Power consumption: 95mA (+12V) / 50mA (-12V)
Width: 30 TE
Depth: 30 mm
Colour: Black
