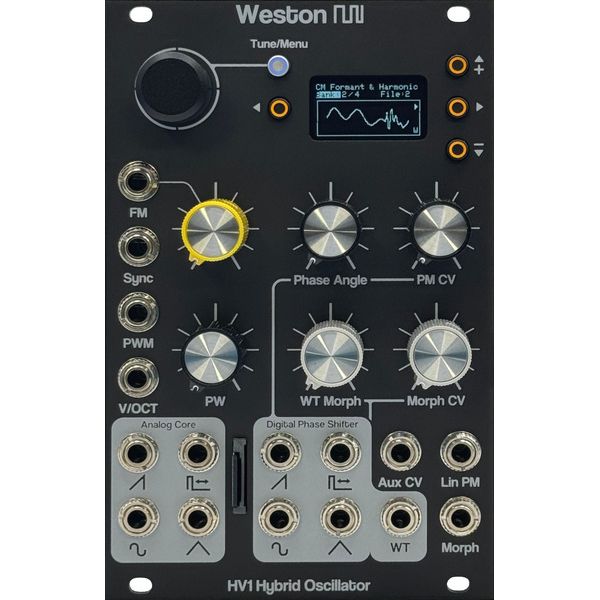

Weston Precision Audio HV1 Hybrid Oscillator

Weston Precision Audio

Weston Precision Audio HV1 Hybrid Oscillator

Vis oversættelse

Eurorack Module

Analogue oscillator core
Digital oscillator with adjustable de-tuning and phase shift to the analogue oscillator
Digital waveform outputs: sawtooth, sine, triangle and pulse
Wavetable section with morph control
microSD card slot for loading your custom wavetables and separate wavetable output
Inputs for pitch CV, FM, pulse width modulation, sync, phase modulation, wavetable morphing and Aux CV (wavefolder or bitcrusher for digital oscillator)
OLED display
Encoder and menu button for operation
Current requirement: 125 mA (+12 V) / 45 mA (-12 V)
Width: 16 HP
Depth: 25 mm

30 dages-Money Back garanti

3 års Thomann garanti

Artikelnummer 618989
salgsenhed 1 stk
Analog Yes
Digital Yes
Width 16 TE / HP
