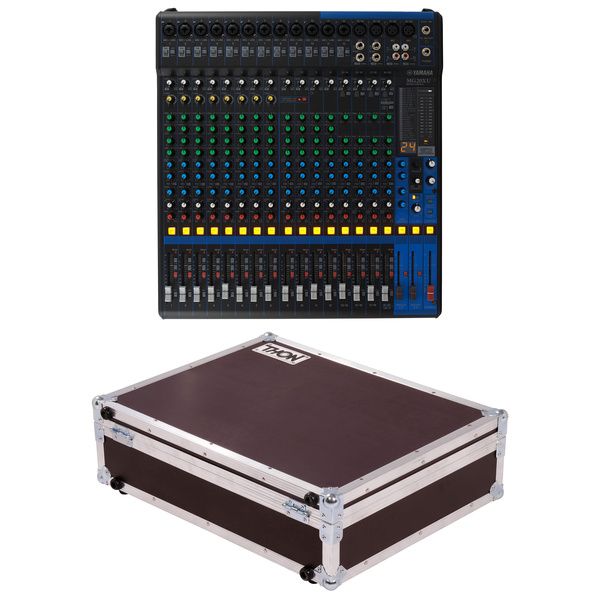

Yamaha MG20 XU Case Bundle
Bundle offer comprising
Yamaha MG20 XU
Mixer
- 20 Channels
- 16 Microphone inputs (XLR/jack) with +48V phantom power
- Channels 1-8 with built-in compressor
- 3 Band EQ with sweepable mids
- High-Pass filter and 26 dB pad switch
- SPX Effect processor with 24 programs
- 4 Stereo inputs (jack) with 3-band EQ
- XLR output
- 2 Group BUS outputs
- 4 AUX sends on each channel
- USB with 2 stereo inputs/outputs (compatible with iPad version 2 or higher, Camera Connection Kit required)
- Dimensions: 444 x 130 x 500 mm
- Weight: 7.1 kg
- Includes a rack mount kit and Cubase AI DAW software as download
- Optional suitable case: Article Nr. 337878
Thon Mixer Case Yamaha MG16/20 XU
Custom-made Mixer Case
- For Yamaha MG16 and MG20 XU
- Material: 7 mm Plywood
- 22 x 22 mm Aluminium edges
- Foam padding
- 2 Drawbolts
- 2 Lift-off hinges
- 1 Suitcase handle
- Steel ball corners
- 9 cm Space for cables in the back
- Exterior dimensions (W x D x H): approx. 51 x 64.5 x 19.5 cm
- Weight: approx. 6.7 kg
- Colour: Phenol Brown
- Made in Germany
-
Fås siden Marts 2026
-
Artikelnummer 639698
-
salgsenhed 1 stk
-
simultaneously used channels 16
-
Mic-In 16
-
Stereo-In 4
-
Master Out XLR
-
Pre Aux max. 2
-
PC-Interface USB-B
-
Multitrack-Recording No
-
USB/SD Direct Record No
-
Effect Processor Yes
-
USB Play No
-
Bluetooth Play No
-
Zones 0
-
HE Units 11,5 U
-
Width 444 mm
-
Height 130 mm
-
Depth 500 mm
-
Weight 7,1 kg
-
Parallel usable Channels 16
-
Simultaneous channels 16
-
Mic Ins 16
-
Mono Line Ins 14
-
Mono Line-in 14
-
Stereo Ins 4
-
Hi-Z Input 0
-
Phantom Power 48 V
-
Aux Ways 4
-
Number of Pre Aux max. 2
-
max. Pre Aux Channels 2
-
PC Interface USB-B
-
Audio Interface Input 2
-
Interface Input 2
-
Audio Interface Output 2
-
Interface Output 2
-
USB/SD Direct Recording No
-
Low Cut Yes
-
Parametric Yes
-
Parametric EQ Yes
-
Compressor Yes
-
Panorama Yes
-
PFL Yes
-
FX Processor 1
-
Racklight Connector No
-
Lamp Connector No
-
Lamp connection No
-
Foot Switch Button
-
Foot switch Button
-
Footswitch Button
-
Bag No
-
19" Rackmount Yes
-
Rackmount Yes
-
Case Thomann 353019
-
Case Thon 337878
-
