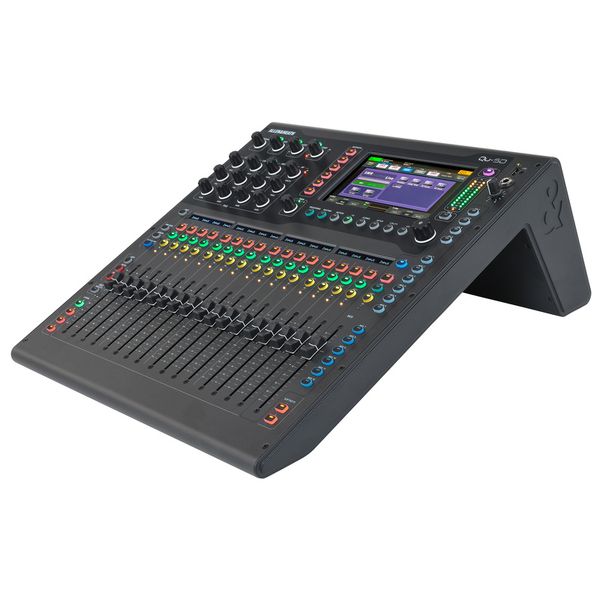

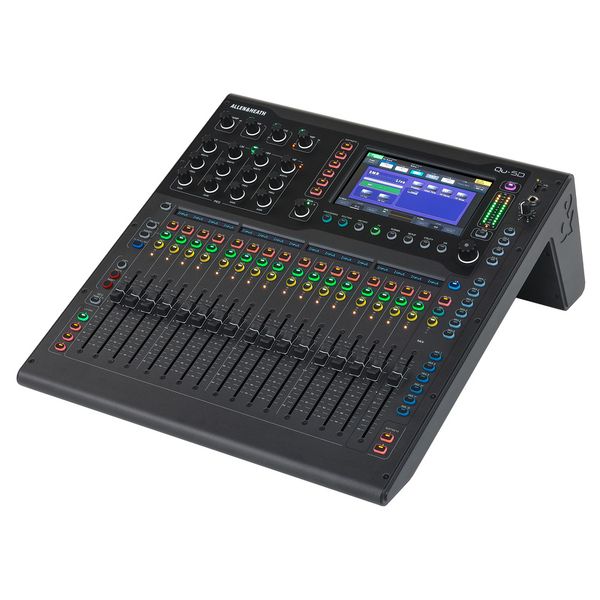

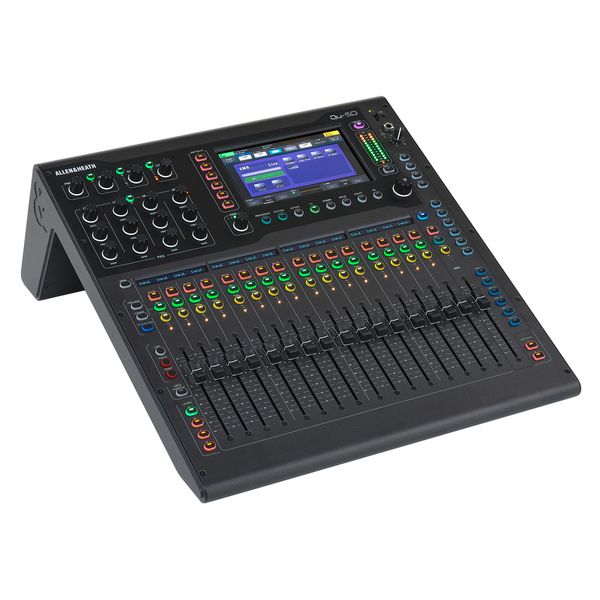

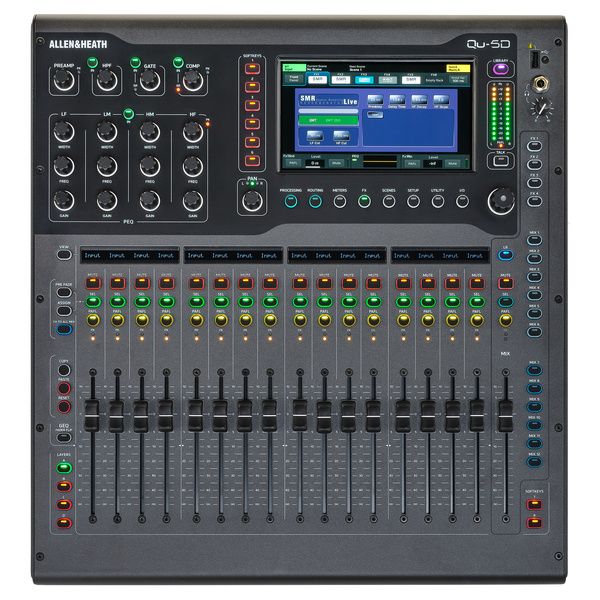

Allen & Heath QU-5D

Start 360°

Vis oversættelse

38-Channel Digital Mixer with Dante Interface

38 inputs for mixing (32 mono, 2 stereo, USB)
16 mic / line combo inputs
Two stereo line inputs

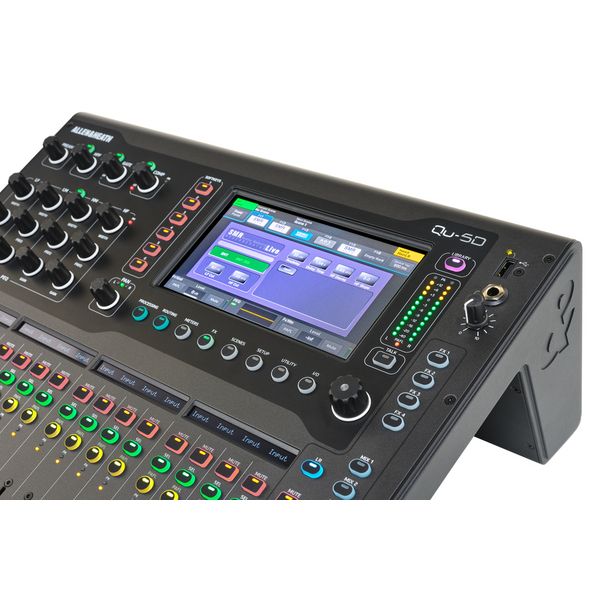

7" capacitive touchscreen

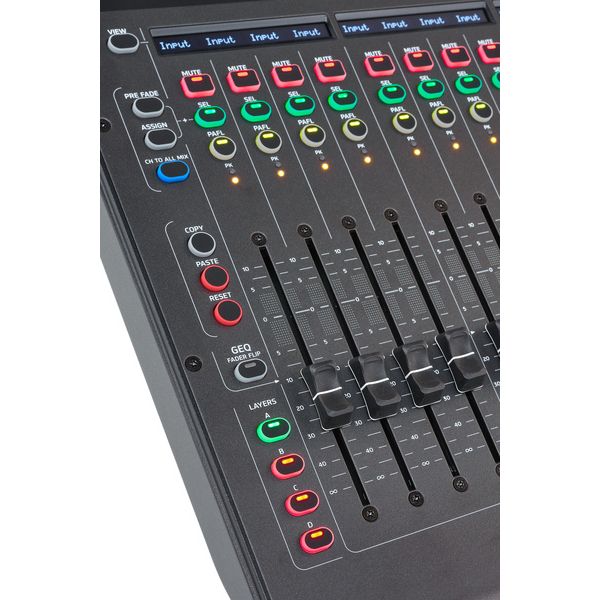

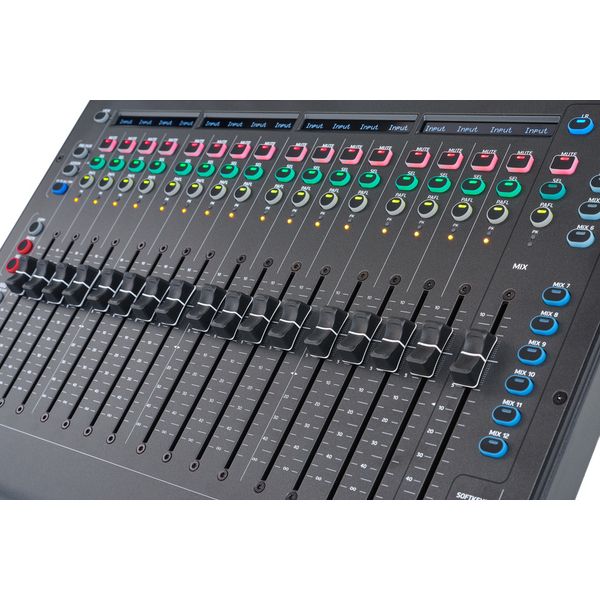

17 faders

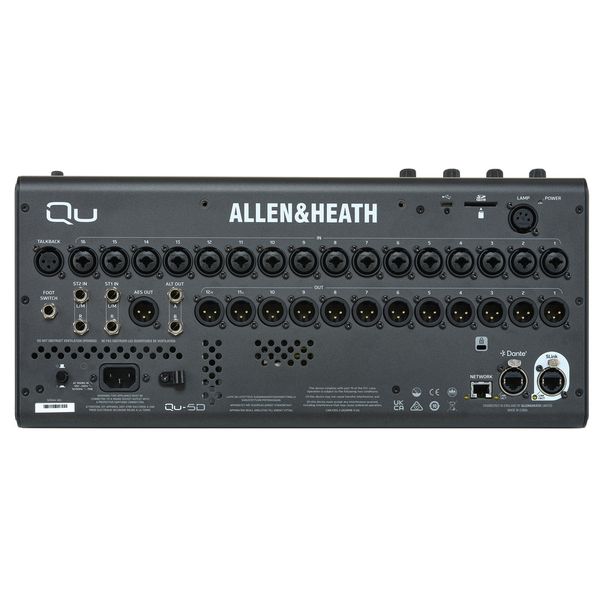

12 XLR outputs
Two TRS outputs
One AES3 output
Four channel strip levels
Eight soft keys
96 kHz XCVI Core
12 mix busses (6 mono aux / group, 6 stereo aux / group)
Four Matrix busses
Six FX engines
Dante (16 x 16)
S-Link port
USB-A stereo recording/playback
USB-C interface with 32 x 32 channels
SD card multitrack recording/playback (16 x 16 at 96 kHz, 32 x 32 at 48 kHz)
Optional 19" rack-mountable (not included)
Dimensions (W x H x D): 440 x 476 x 211 mm
Weight: 10 kg

30 dages-Money Back garanti

3 års Thomann garanti

Fås siden Maj 2025
Artikelnummer 617339
salgsenhed 1 stk
User Interface Physical
Number of faders 17
DSP Input channels 32
Mic Preamp 16
Physical outputs 12
Digital stagebox connection ACE
Hotspot No
Multitrack Record Yes
integratated Player/Rec via USB/SD Multitrack
19" Rackmount Optional
DSP Output Channels 20
Busses 12
Mono-Line Input 16
Stereo-Line Input 2
Ethernet Yes
Soundcard interface USB-C
Recorder Format WAV
Scribble Strips Yes
RTA Yes
FX Processor 6
Delay Output Yes
Matrix 4
Midi Connector No
Sample rate 96 kHz
Expansion Card slots 0
Digital ADAT No
Digital SPDIF No
Digital AES3/ASESEB Yes
Digital MADI No
Digital Dante Yes
110V capable Yes
Case No
Height 211 mm
Width 440 mm
Depth 476 mm
Weight 10 kg
