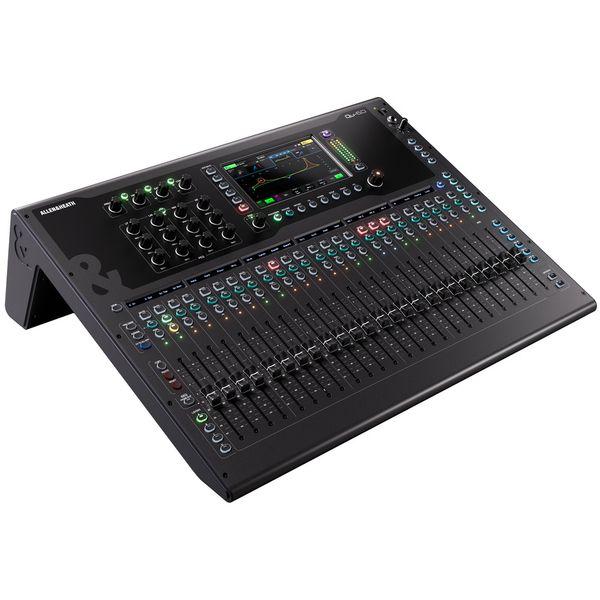

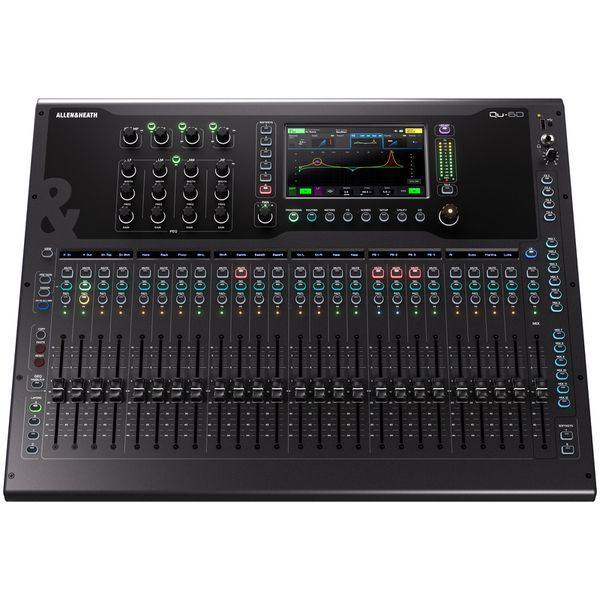

Allen & Heath QU-6D
Start 360°
38-Channel Digital Mixer with Dante Interface
- 38 inputs for mixing (32 mono, 2 stereo, USB)
- 24 Mic/Line combo inputs
- Two stereo line inputs
- 7" capacitive touchscreen
- Remote Apps Qu MixPad & Qu 4You
- 25 motorised faders
- 16 XLR output
- Two TRS outputs
- One AES3 output
- Four channel-strip layers
- Eight SoftKeys
- 96 kHz XCVI Core
- 12 mix busses (six mono aux/group, six stereo aux/group)
- Four matrix buses
- Six FX engines
- Dante (16 x 16)
- SLink port
- USB-A stereo recording/playback
- USB-C interface with 32 x 32 channels
- SD card multitrack recording/playback (16 x 16 at 96 kHz, 32 x 32 at 48 kHz)
- Dimensions (W × H × D): 609 × 476 × 213 mm
- Weight: 12.9 kg
-
Fås siden Juli 2025
-
Artikelnummer 617833
-
salgsenhed 1 stk
-
User Interface Physical
-
Number of faders 25
-
DSP Input channels 32
-
Mic Preamp 24
-
Physical outputs 16
-
Digital stagebox connection Dante
-
Hotspot No
-
Multitrack Record Yes
-
integratated Player/Rec via USB/SD Multitrack
-
19" Rackmount No
-
DSP Output Channels 20
-
Busses 12
-
Mono-Line Input 24
-
Stereo-Line Input 2
-
Ethernet Yes
-
Soundcard interface USB-C
-
Recorder Format WAV
-
Scribble Strips Yes
-
RTA Yes
-
FX Processor 6
-
31 Band EQ 12
-
Delay Input Yes
-
Delay Output Yes
-
Matrix 4
-
DCA/VCA Groups 8
-
Midi Connector No
-
Sample rate 96 kHz
-
Monitor Apps Yes
-
Separate Personal Monitor system No
-
Expansion Card slots 0
-
Digital ADAT No
-
Digital SPDIF No
-
Digital AES3/ASESEB Yes
-
Digital MADI No
-
Digital Dante Yes
-
110V capable Yes
-
Case No
-
Height 213 mm
-
Width 609 mm
-
Depth 476 mm
-
Weight 12,9 kg
-
