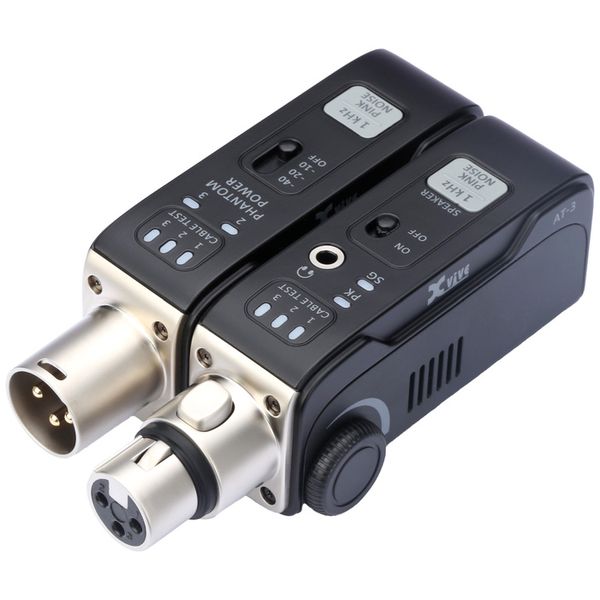

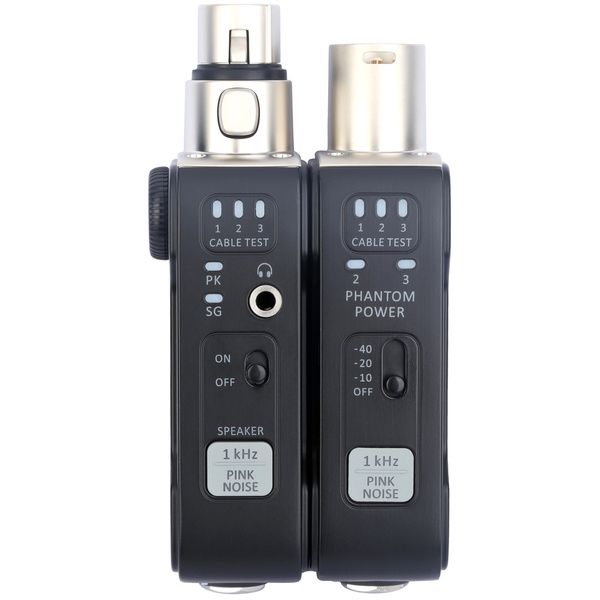

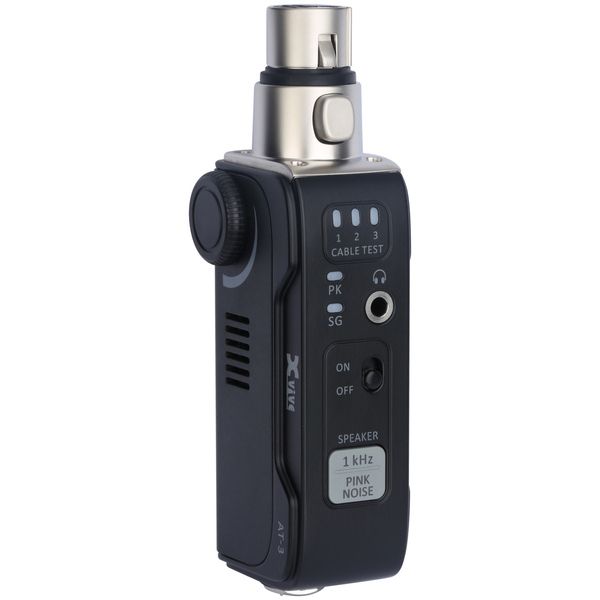

XVive AT-3 Portable Audio Tester
4.4 ud af 5 stjerner fra 7 kundebedømmelser
()
Start 360°
Compact Audio Test System
- Versatile and indispensable testing tool for audio professionals
- Suitable for testing PA speakers, effect pedals, cables, DI boxes, IEM systems, mixing consoles and other audio devices
- Signal generator: outputs 1 kHz sine wave signal or pink noise audio signal via the male XLR socket and 6.35 mm / 3.5 mm jack sockets
- Three output level options: -10 dB, -20 dB, -40 dB
- XLR cable tester: checks the proper functioning of all three contacts of an XLR cable with a 3.3 V test voltage
- Supports split-unit remote testing for long cables with one unit at each end
- Independent operation of both units for flexible audio testing options
- XLR input measurement: measures input level at the female XLR socket
- -20dBu - +10 dBu
- Phantom power test: tests phantom voltage and correct functioning of the contacts
- Built-in speakers
- Signal monitoring via headphones or loudspeakers
- Rechargeable lithium battery
- Battery life: approx. 2 hours
- XLR input/output with input impedance 3 kOhm and output impedance 350 Ohm
- 6.35 mm jack input/output with output impedance of 600 ohms
- 3.5 mm headphone output
- USB type-C charging port
- Dimensions (L x W x H): 210 x 70 x 110 mm
- Weight: 188 g
- Includes carrying case, charging cable (USB Type-C to 2 x USB Type-C) and 6.35 mm jack adapter
-
Fås siden Januar 2026
-
Artikelnummer 633800
-
salgsenhed 1 stk
-
Cable Tester Yes
-
Level Meter No
-
Speaker Tester Yes
-
Software No
