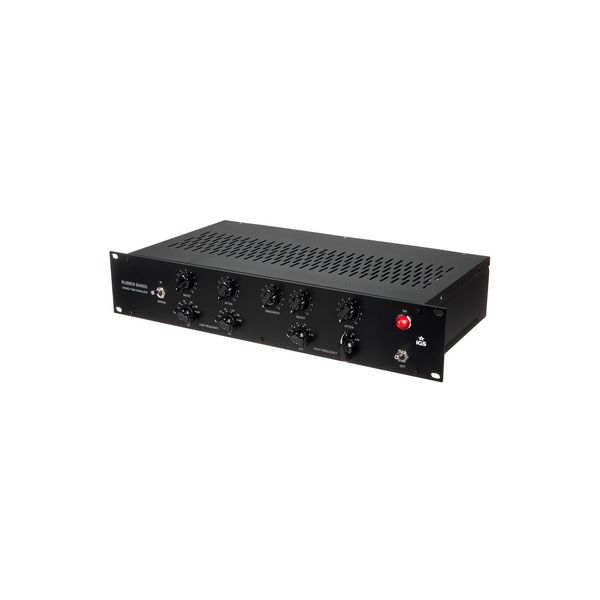

IGS Audio Rubber Bands B-Stock
Stereo Tube Equalizer
- Two-block technology: classic passive filter (such as EQP-1 Pultec EQ) + special tube amp (organic amp)
- Bypass Relay
- 4 Sections: 2x for bass and 2x for treble
- Panned potentiometers for frequencies
- Bass Boost
- Bass Cut
- High Boost (Q selectable) and High Cut
- Boost / Cut Range: +/- 15 dB
- Q factor: 0.5 to 4
- Input impedance: 10k ohms
- Output Impedance: 600 Ohm
- Audio Transformers: Carnhill, Edcor
- Operating Level: +4 dBu
- Max. Input Level +18 dBu
- Max. Output Level: +22 dBu
- Dynamic Range: 95 dBA @ 1 kHz, + 18 dBu
- Frequency range: 20 Hz to 20 kHz, +/- 0.3 dB
- Signal to Noise Ratio: 81 dBA
- External power supply
- Housing: 19 "/ 2 U
-
Fås siden Maj 2015
-
Artikelnummer 404766
-
salgsenhed 1 stk
-
Channels 2
-
Frequency Bands 3
-
Tube(s) Yes
-
Height units 2 U
-
Connectors XLR
