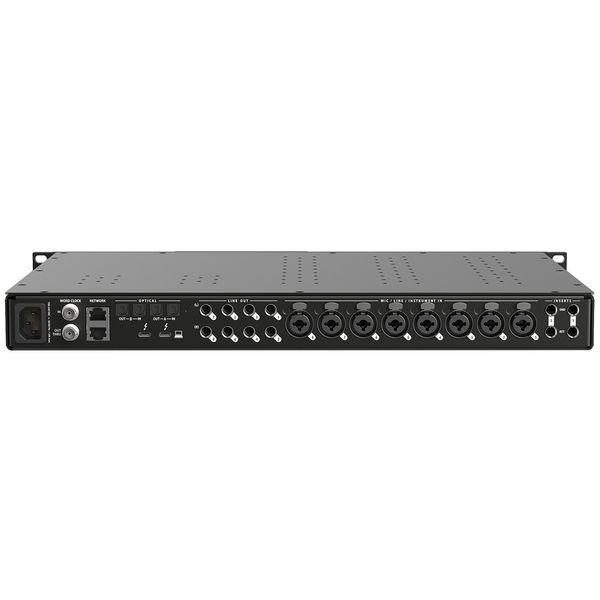

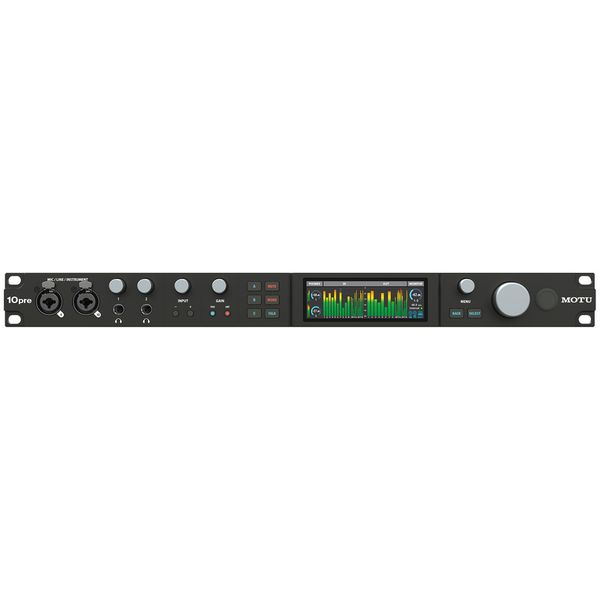

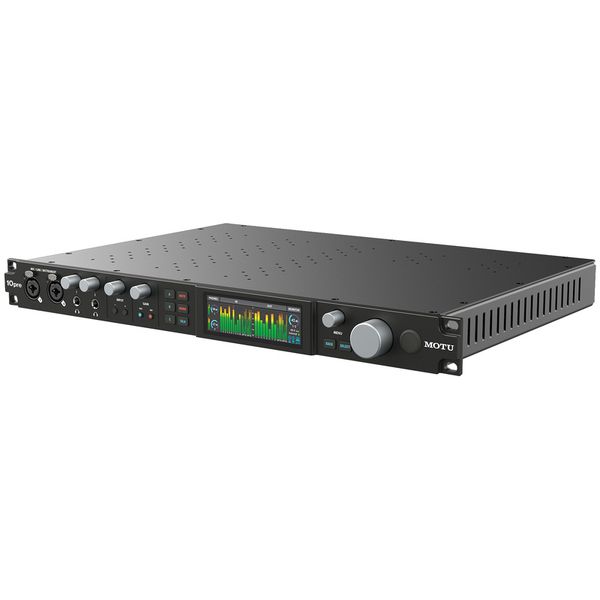

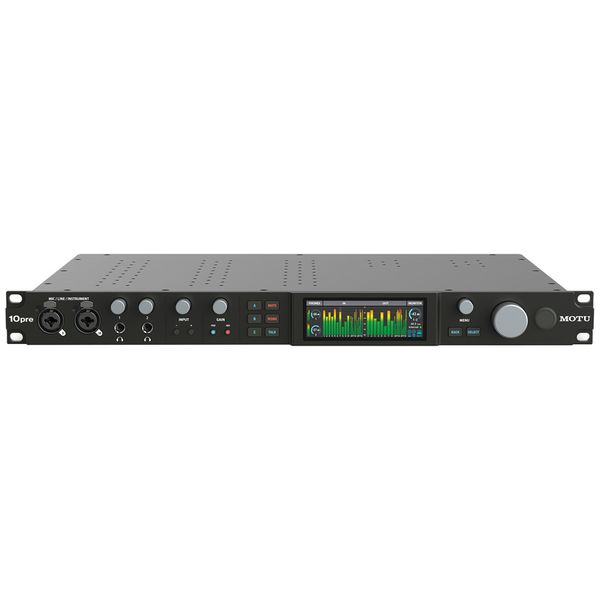

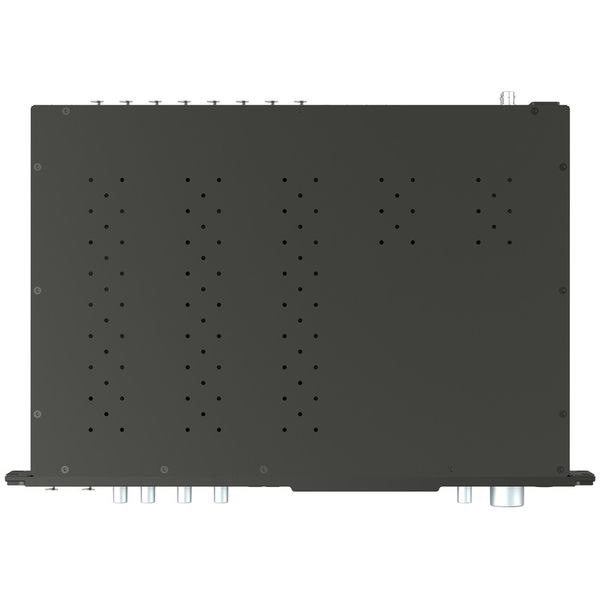

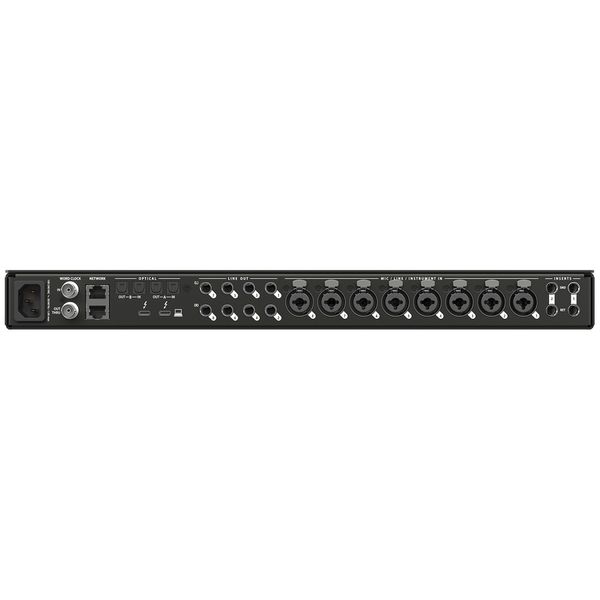

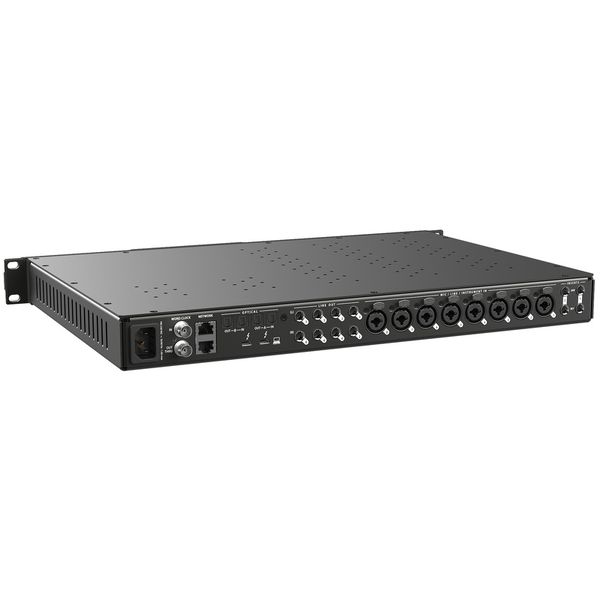

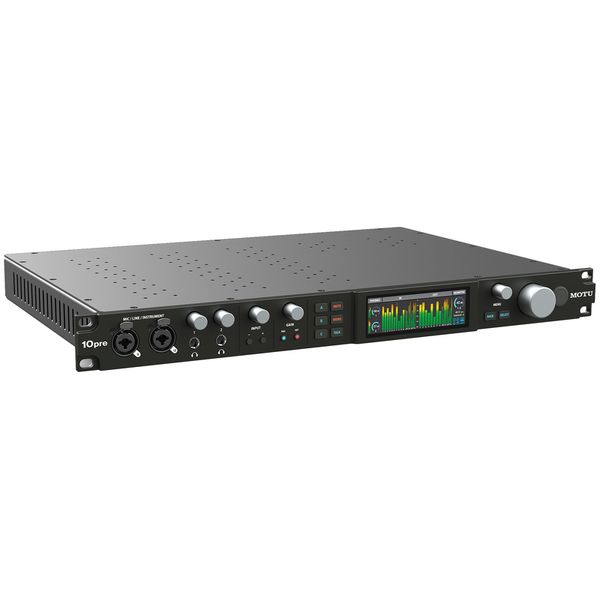

MOTU 10pre; 26 x 28 Thunderbolt/USB/AVB audio interface; 10 high-quality preamps with up to 74 dB gain, 48 V phantom power, -20 dB pad, phase reverse, remote control, and dedicated inserts (on inputs 1 and 2); 3.9-inch display with precise level meters for all inputs and outputs; ESS Sabre32 Ultra DAC technology; DSP-controlled mixer with 64 inputs, 32 buses, and DSP effects (reverb, 4-band equalizer, gate, compressor, and high-pass filter); Patchbay routing to route any source signal to any destination; 2x Gigabit Ethernet ports support AVB daisy chaining and networking with standard CAT 5/6 cables; 16x 8-channel AVB stream inputs and outputs (128 audio channels total); Wi-Fi control via CueMix Pro app; Network management functions (detection and control of multiple devices on the network); Control room functions such as talkback and A/B/C monitor selection via CueMix Pro software; 2x headphone outputs with independent volume control; Dynamic range line outputs: 125 dB; 24-bit / 192 kHz; Dynamic range of mic inputs: 118 dB; Connections: 8 balanced DC-coupled 6.3 mm jack outputs, 10 mic/line/Hi-Z inputs via XLR/jack combo socket, 2x ADAT (16 ADAT channels), word clock in/out; Includes 40 Gbps USB-C cable (compatible with Thunderbolt 3/4, USB4, USB3, and USB2); System requirements: Windows 10 or higher, Mac OSX 12 or higher; Dimensions: 482 x 311 x 44 mm
MOTU 10pre; 26 x 28 Thunderbolt/USB/AVB lydkort; 10 højkvalitets forforstærkere med op til 74 dB gain, 48 V fantommating, -20 dB pad, faseomvendt lyd, fjernbetjening og dedikerede inserts (på indgang 1 og 2); 3,9-tommer skærm med præcise niveaumålere til alle indgange og udgange; ESS Sabre32 Ultra DAC-teknologi; DSP-styret mixer med 64 indgange, 32 busser og DSP-effekter (reverb, 4-bånds equalizer, gate, kompressor og højpasfilter); Patchbay-routing til at route ethvert kildesignal til enhver destination; 2x Gigabit Ethernet-porte understøtter AVB daisy chaining og netværk med standard CAT 5/6-kabler; 16x 8-kanals AVB stream-indgange og -udgange (i alt 128 lydkanaler); Wi-Fi-kontrol via CueMix Pro-appen; Netværksadministrationsfunktioner (detektion og kontrol af flere enheder på netværket); Kontrolrumsfunktioner såsom talkback og A/B/C monitorvalg via CueMix Pro-software; 2x hovedtelefonudgange med uafhængig lydstyrkekontrol; Dynamisk rækkevidde for lineudgange: 125 dB; 24-bit / 192 kHz; Dynamisk rækkevidde for mikrofonindgange: 118 dB; Tilslutninger: 8 balancerede DC-koblede 6,3 mm jack-udgange, 10 mikrofon/line/Hi-Z-indgange via XLR/jack-kombinationsstik, 2x ADAT (16 ADAT-kanaler), word clock ind/ud; Inkluderer 40 Gbps USB-C-kabel (kompatibelt med Thunderbolt 3/4, USB4, USB3 og USB2); Systemkrav: Windows 10 eller nyere, Mac OSX 12 eller nyere; Dimensioner: 482 x 311 x 44 mm
-
Artikelnummer
629928
-
salgsenhed
1 stk
-
Recording / Playback Channels
26 / 28
-
Number of Mic Inputs
10
-
Number of Line Inputs
10
-
Instrument Inputs
10
-
Number of Line Outs
8
-
Headphone Outs
2
-
Phantom power
Yes
-
Number of S/PDIF Connectors
0
-
Number of ADAT Connectors
2
-
Numer of AES/EBU Connectors
0
-
Number of MADI Connectors
0
-
Ethernet
2
-
Other Connectors
No
-
MIDI interface
No
-
Word Clock
1xIn, 1xOut
-
Max. sample rate (kHz)
192 kHz
-
Max. resolution in bit
24 bit
-
USB Bus-Powered
No
-
Incl. power supply
Yes
-
USB Version
4.0
-
Width in mm
482 mm
-
Depth in mm
311 mm
-
Height in mm
44 mm
-
Connection Format
USB port Type C
-
Number of Instrument Inputs
10
-
Number of Line Outputs
8
-
Phantom Power
Yes
-
AES/EBU Connectors
0
-
Max. Samplerate
192 kHz
-
Max. Resolution in Bit
24 bit
-
Incl. Power Supply
Yes
-
Thunderbolt Version
4
-
Included in delivery
Software
-
Zero latency monitoring
Yes
-
